Introduction
Custom URL extension is a feature/functionality which helps Content Editor to select data from 3rd party service.
There are two Steps to Implement Custom URL.
- Tridion Sites Configuration - Define URL in CM Schema, which serves the data for Component field specified.
- Configure Service as Web Application - Host Web application on CM Web Application as virtual directory.
Tridion Sites Configuration
Custom URL is configured on Schema level i.e.
For example we have created Test Schema – TestTeaser
- Tridion Sites CM provide functionality of Custom URL on Schema
- Set the value of custom URL,See below How to create web page which serves data to CM fields.
- For Example /CustomUrlExtension/Index.html
- Once value is set on schema then create component then you would see hyper link on field for which we have setup custom URL
- Then once you click on this you would see webpage on popup
- Then select any value from list
- Once submit value will be appeared onCM field and pop up is closed.
Setup Web Page/Web Application which serves data for headline
- To create Web Page which server data for CM field needs to have following PopupInit.json page included
<script type="text/javascript" language="javascript" src="/WebUI/Core/Controls/Popup/PopupInit.js"></script>
- Here we are using https://jsonplaceholder.typicode.com/postsfor to get some example data.

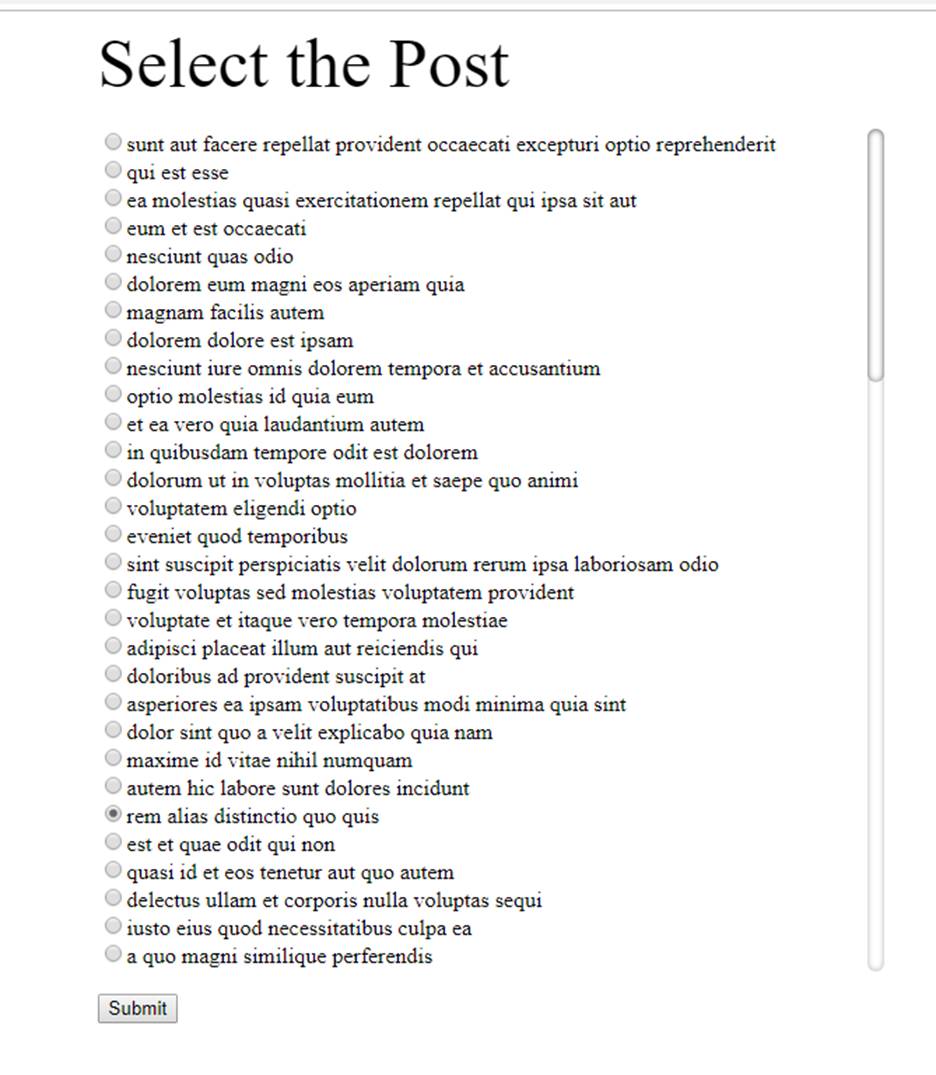

- Sample web page view
Here is sample code for web page which will appear as pop up
<html>
<head>
<style>
::-webkit-scrollbar {
width: 12px;
}
::-webkit-scrollbar-track {
-webkit-box-shadow: inset 0 0 6px rgba(0, 0, 0, 0.3);
border-radius: 10px;
}
::-webkit-scrollbar-thumb {
border-radius: 10px;
-webkit-box-shadow: inset 0 0 6px rgba(0, 0, 0, 0.5);
}
</style>
<script type="text/javascript" language="javascript" src="/WebUI/Core/Controls/Popup/PopupInit.js"></script>
</head>
<body onload="loadData()">
<div class="scrolling-data" style="margin-left: 40%;">
<form name="myForm">
<div id="title" style="font-size: 50;">Select the Post</div>
<br>
<div id="posts" style="height: 75vh;width: 70vh;overflow: scroll;overflow-x: hidden;">
</div>
</form>
<button type="button" onclick="checkeSelectedValue()">Submit</button>
</div>
</body>
<script>
var data = '';
function loadData() {
var xhttp = new XMLHttpRequest();
xhttp.onreadystatechange = function () {
if (this.readyState == 4 && this.status == 200) {
data = this.responseText;
var jsonData = JSON.parse(data);
jsonData.forEach(function (post) {
var d1 = document.getElementById('posts');
d1.insertAdjacentHTML('beforeend', '<input type="radio" name="post" id="' + post.id + '" value="' + post.title + '">' + post.title + '</input><br>');
});
}
};
xhttp.open("GET", "https://jsonplaceholder.typicode.com/posts", true);
xhttp.send();
}
function checkeSelectedValue() {
var post = document.querySelector('input[name = "post"]:checked').value;
var fields = window.dialogArguments.getFields();
if (fields && fields.length > 0) {
fields[0].setValues([post]);
}
window.close();
}
</script>
</html>
On Submit web page will set the value to CM field and the close current window.
