Broken segmentation in recent Studio updates (newer than 2015 SR3 and 2017 SR1 onwards)

Evzen Polenka

I'm creating this separate thread for paragraph based segmentation issues I mentioned elsewhere:

https://community.sdl.com/solutions/language/translationproductivity/f/90/p/13299/46835#46835
(additional info in https://community.sdl.com/product-groups/translationproductivity/f/90/p/13299/48428#48428)

I'm attaching test files here:
5383.testfiles.zip

ZIP contains:
IAD_Pseudo-HTML.sdlftsettings - file type definition
test_en-US_de-DE.sdltm - testing TM with the additional Line break segmentation rule
test_English.txt.html - source file to test with
test_English.txt - original client's source format for reference only (it's very weird hybrid of plain text and HTML content with some custom non HTML-compliant tags and some "Excel formulas-like code"... normally it contains more of that 'garbage', but I deleted it as it's not relevant now)

Now, already in the "working" version I see some weirdness in the LineBreak rule - the only rule which works is this weird one:
.?[\r\n][\r\n]
The logical one - .?[\r\n]+ - does NOT work for unknown reason :-O
But at least something works...

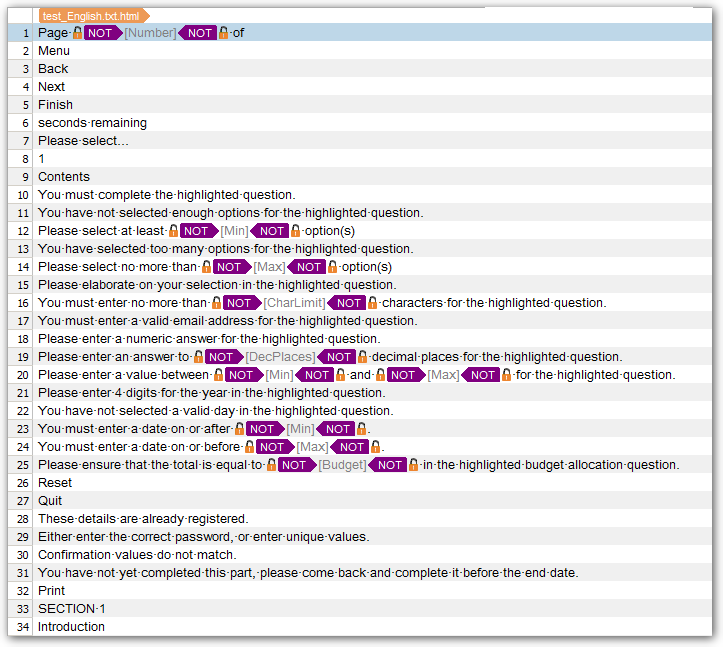

In Studio 2015 SR3 (12.3.5262.0) and 2017 CU5 (14.0.5889.5) I get this - all properly segmented as expected...

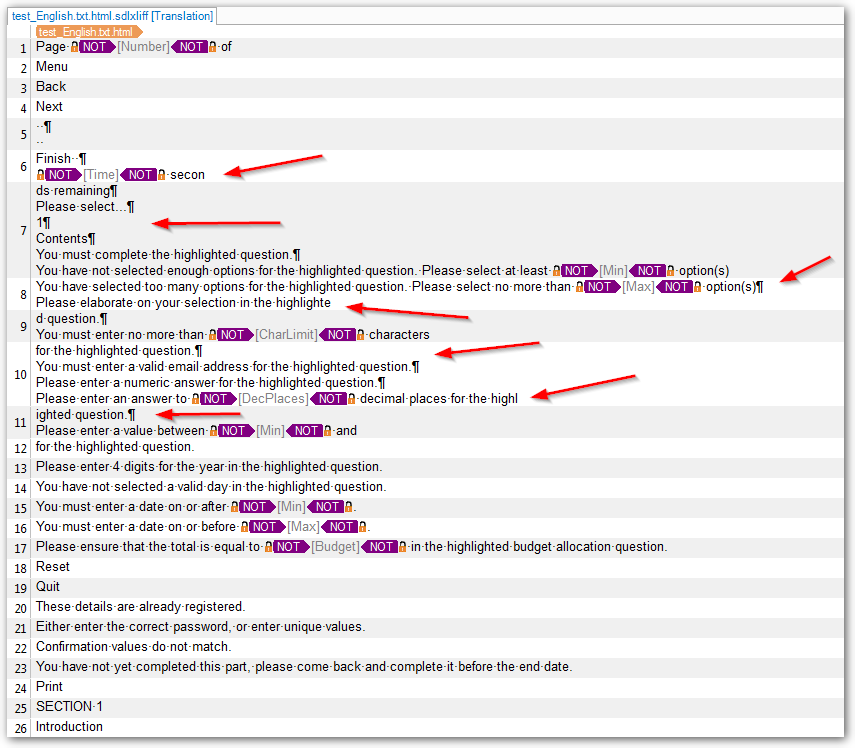

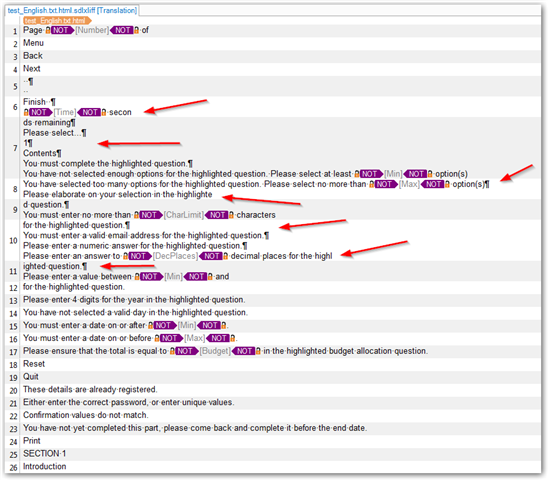

In Studio 2015 SR3 CU10 (12.3.5281.10) and 2017 SR1 CU7 (14.1.6329.7) I get this - segments broken at totally weird places in a middle of a word... but at the same time NOT broken at the line break (sometimes :-O)
It must have something to do with the inline locked content, since plaintext lines further down the test file are segmented correctly.

And more weirdly, I am not able to find regex which would make it work in these new Studio updates!

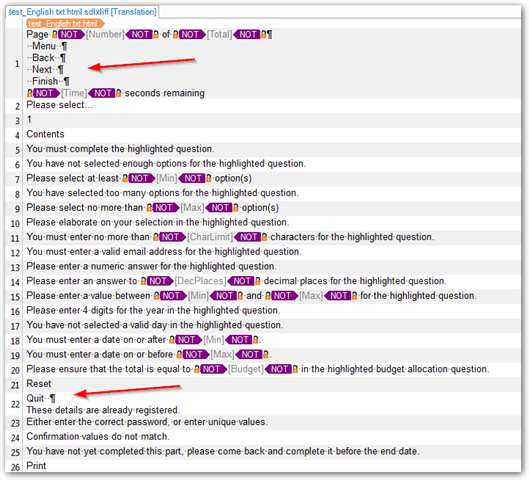

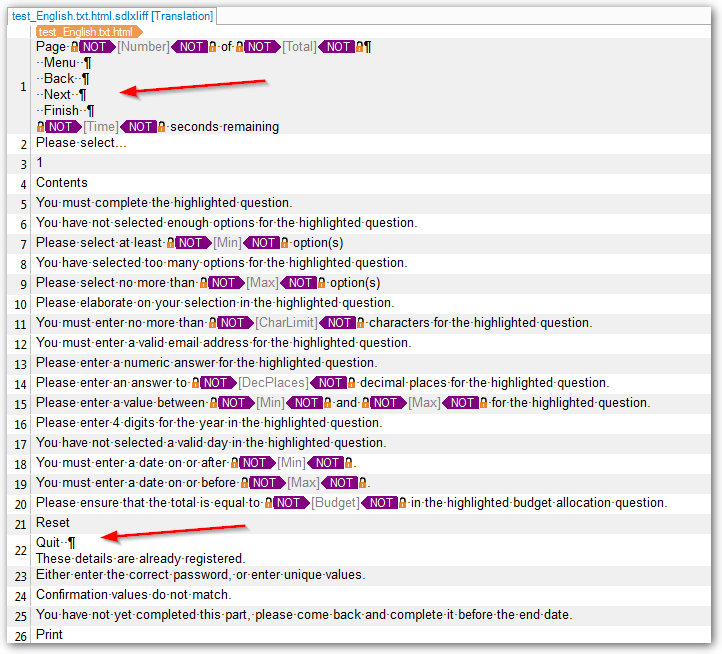

Neither the basic .?[\r\n]+ regex, nor the [\w\p{P}][\r\n]+ regex according this knowledge base article work - the basic regex produces exactly the same weirdness as above, the regex from the KB article gets better, but fails on lines with trailing spaces (and adding \s* anywhere in the regex yields again exactly the same weird result as above):

So, my conclusion is that there is (still) something broken in the segmentation rules.
Rate translation
×
Suggest better translation
×
Moderator UI
×
  • Get AI Suggestion
Parents
  • 0

    Seeing the following lines in Studio 2017 CU13

    • Fixed the way whitespace is accounted for when splitting text (marking enders) (CRQ-9468).
    • Fixed handling of the text separated by CRLF characters in certain circumstances (CRQ-9467).
    • Fixed segmentation for line breaks resulting in incorrect segments for certain files (CRQ-8233).

    I did a quick test to see if it fixes the problem reported in this thread... and yes, it seems to be ALMOST(?) fixed.

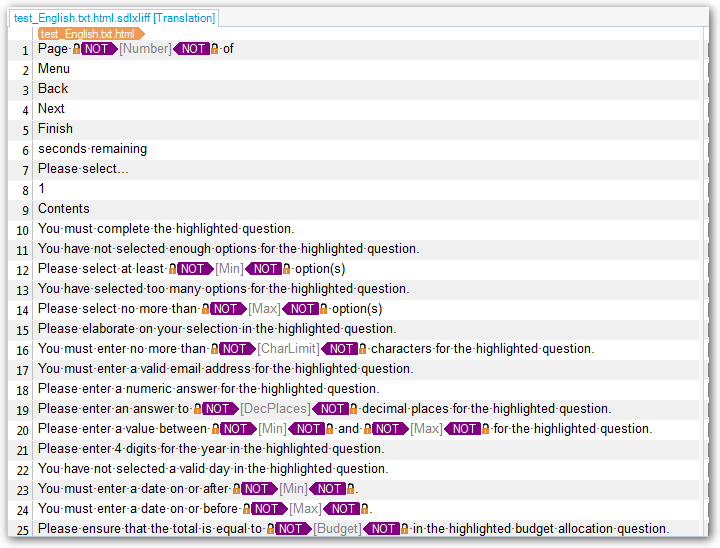

    Even using the simplest appropriate regex for linebreak [\r\n]+ gives the desired result (with the current custom parser settings):

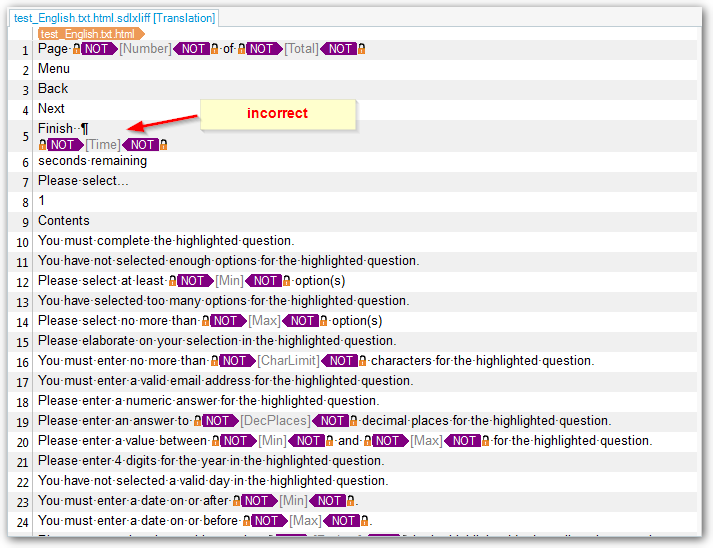

    However... if I further finetune the file type settings and change the "NOT" rule segmentation hint to "Include with text" (to get the complete sentence in segments 1 and 6), I still get some broken segmentation:

    Perhaps it has something to do with the combination of the "Finish" line having trailing whitespaces and the next line starting with tag...
Reply
  • 0

    Seeing the following lines in Studio 2017 CU13

    • Fixed the way whitespace is accounted for when splitting text (marking enders) (CRQ-9468).
    • Fixed handling of the text separated by CRLF characters in certain circumstances (CRQ-9467).
    • Fixed segmentation for line breaks resulting in incorrect segments for certain files (CRQ-8233).

    I did a quick test to see if it fixes the problem reported in this thread... and yes, it seems to be ALMOST(?) fixed.

    Even using the simplest appropriate regex for linebreak [\r\n]+ gives the desired result (with the current custom parser settings):

    However... if I further finetune the file type settings and change the "NOT" rule segmentation hint to "Include with text" (to get the complete sentence in segments 1 and 6), I still get some broken segmentation:

    Perhaps it has something to do with the combination of the "Finish" line having trailing whitespaces and the next line starting with tag...
